Modbus::TcpLayer Class Reference

TCP/IP v4 & v6 network layer. More...

#include <tcplayer.h>

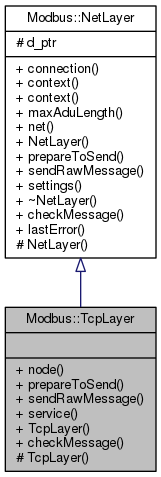

Inheritance diagram for Modbus::TcpLayer:

Public Member Functions
const std::string &	connection () const
	Returns the connection used. More...
modbus_t *	context ()
	libmodbus context More...
const modbus_t *	context () const
uint16_t	maxAduLength () const
	Returns the maximum ADU length.
Net	net () const
	Underlying layer used (backend) More...
const std::string &	node () const
	Host name or IP address. More...
virtual bool	prepareToSend (Message &msg)
virtual int	sendRawMessage (const Message *msg)
const std::string &	service () const
	Service name or port number. More...
const std::string &	settings () const
	Returns the connection settings. More...
	TcpLayer (const std::string &host, const std::string &service)
	Constructor.

Static Public Member Functions
static bool	checkMessage (const Message &msg)
static std::string	lastError ()
	last error message More...

Detailed Description

TCP/IP v4 & v6 network layer.

This class can not and should not be instantiated by the user. It provides access to properties and methods specific to the TCP layer.

An instance of this class is created by the constructor Device::Device() of the Device class (or its derived classes) if the TCP layer is selected.

Access to this instance is done using the Device::tcp() method.

Author

Pascal JEAN, aka epsilonrt

Copyright

GNU Lesser General Public License

See also

Device::Device()

Device::tcp()

Member Function Documentation

checkMessage()

static bool Modbus::TcpLayer::checkMessage ( const Message &  msg )

static

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

connection()

const std::string& Modbus::NetLayer::connection ( ) const

inherited

Returns the connection used.

Serial port or host depending on the backend.

context() [1/2]

modbus_t* Modbus::NetLayer::context ( )

inherited

libmodbus context

context is an opaque structure containing all necessary information to establish a connection with other Modbus devices according to the selected variant.

context() [2/2]

const modbus_t* Modbus::NetLayer::context ( ) const

inherited

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

lastError()

static std::string Modbus::NetLayer::lastError ( )

staticinherited

last error message

This function shall return the error message corresponding to the last error. This function must be called right after the instruction that triggered an error.

net()

Net Modbus::NetLayer::net ( ) const

inherited

Underlying layer used (backend)

This function allows to know the underlying layer used.

node()

const std::string& Modbus::TcpLayer::node

(

)

const

Host name or IP address.

This property specifies the host name or IP address of the host to which we are connected, eg. "192.168.0.5" , "::1" or "server.com".

prepareToSend()

virtual bool Modbus::TcpLayer::prepareToSend ( Message &  msg )

virtual

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Reimplemented from Modbus::NetLayer.

sendRawMessage()

virtual int Modbus::TcpLayer::sendRawMessage ( const Message *  msg )

virtual

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Reimplemented from Modbus::NetLayer.

service()

const std::string& Modbus::TcpLayer::service

(

)

const

Service name or port number.

This property is the service name/port number to which we are connected.

settings()

const std::string& Modbus::NetLayer::settings ( ) const

inherited

Returns the connection settings.

IP port or speed, parity and stop bit depending on the backend
